The Videx CVKC4K series videocode kits offers a number of new operating features and allows greater flexibility for installation. With the addition of a VIDEX stand-alone digital codelock module Art.4800 added to the large number of features offered by the CVK4K videokit. The user can open the door from the outside by entering an access code through the keypad.
- Up to 4 outdoor stations with 2 call push buttons calling 2 independent apartments
- Up to 3 peripheral devices connected in parallel to each videophone (additional videophone extension sounder, telephone handset etc.)
- Disability Friendly - Acoustic & Visual signalling of the system status (busy, call in progress conversation in progress and door open signalling)
- Recall (selective entrance recall on systems with 2 or more outdoor stations)
- Intercommunication between internal videophones
- Local call tone which is different from the external push button call tone
- Videophone incorporates Privacy On/Off facility (with either latched or timed activation of privacy)
- Programmable Call, conversation and door opening times
- Dry relay contacts for electric lock
- Power supply can be connected to the videophone or the outdoor station.
CVKC4K

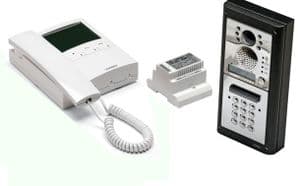

One button Videx videocode kit comprised of:
- 1 x Outdoor station including speaker unit module Art.4833-1/C comprised of high quality auto iris lens CCD colour camera and white light illumination LEDs plus one codelock module Art.4800 (3 codes / 3 relay outputs) and a two module surface mounting box with module support and hinge Art.4882. Standard finishes: mirror stainless steel for the front plate and gun metal grey for the module support.
- 1 x Art.3656 3600 Series Videophone with 3.5 inch colour TFT flat monitor,door open/intercommunicating call, camera recall and Privacy on/Call reject/Service push button plus on and door open LEDs* and one privacy on LED. Electronic call tone with 3 level adjustable volume. Controls: picture hue and brightness. Complete with wall mount support Art.5980.
- 1 x Art.850K Power transformer in a Type A 5 module DIN box.
